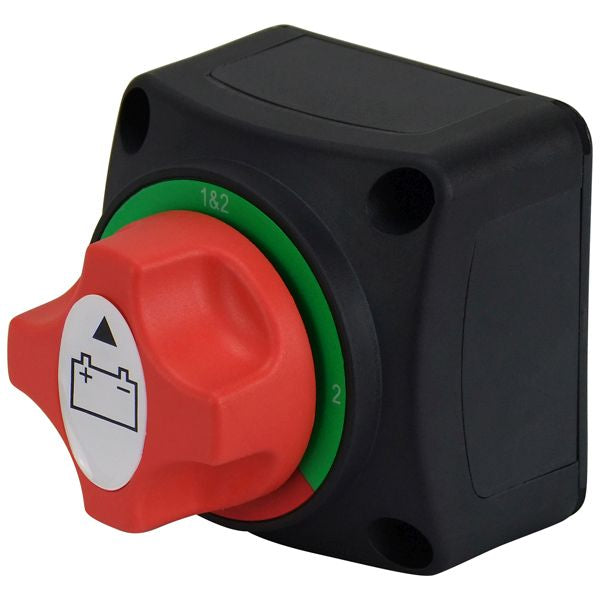

The dual battery master switch features four positions with brass terminals and a heavy duty plastic housing, making it suitable for use in marine, 4WD, truck and trailer applications
• Robust weather resistant battery switch
• Suitable for applications up to 50VDC.
1000A @ 12V for 30 seconds.
500A @ 24V for 30 seconds.
250A @ 50V for 30 seconds.
300A @ 12V continuous load maximum.
150A @ 24V continuous load maximum.
75A @ 50V continuous load maximum.
• Mounting screws NOT supplied.
• 2 position features - On / Off.

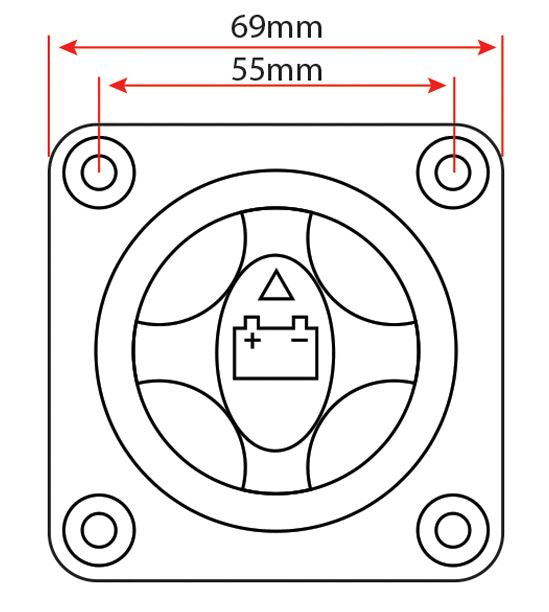

Dimensions: 70mm x 70mm x 68mm
Pack Qty: 1
Function: 4
Max. Continuous Load: 100Amp @ 12V
