• This wiper kit is complete with wiper and water container for freshwater windscreen washing
• Quite operation
• 2-speed motor
• Easy adjustable sweep angle - from 40° - 110°

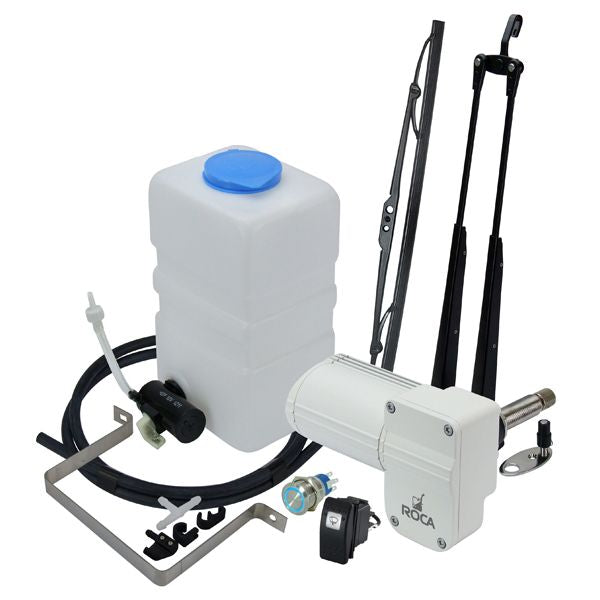

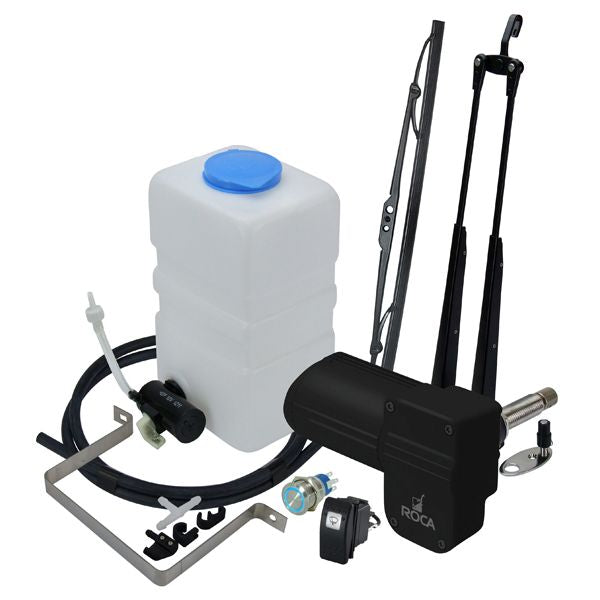

This Kit Includes:
• Waterproof 2-speed 12V Wiper motor (Available in Black or White)
• Adjustable 482mm-609mm Pantograph Arm
• 508mm Deluxe wiper blade.
• Windshield washer kit, including: 2ltr bottle, 12V Pump, 110cm hose, hose retainers and 1 x arm mounted, twin jet nozzle.
• Blue luminated IP67 Rated push button switch
• 12V 3 Position Wiper Switch (OFF-ON-ON)
Part Specifications:
- Wiper Motor
• Volts: 12 Volt
• Shaft Length: 68mm (~2.678 inch)
• Thread Length 42mm
• Fuse: 5A/12V
• Unit Dimensions (LxWxD): 170 x 100 x 127*mm
(* Depth of Unit includes shaft length unit depth -shaft length is 59mm)
-3 Position Switch:
• Volts: 12V
• Cut Out: 36.8mm x 21.1mm
• Protection Rating: IP68
• Overall Dimension (HxW): 49mm x 24mm
- Push Button Switch:
• Durable stainless steel housing and button.
• Momentary switch.
• Blue LED light ring.
• Silver plated quick connect terminals.
• Up to 50,000 cycles.
• Operating temperature - 20°C - +55°C.
• IP67 rated.
